PistolGBBAAP
Action Army

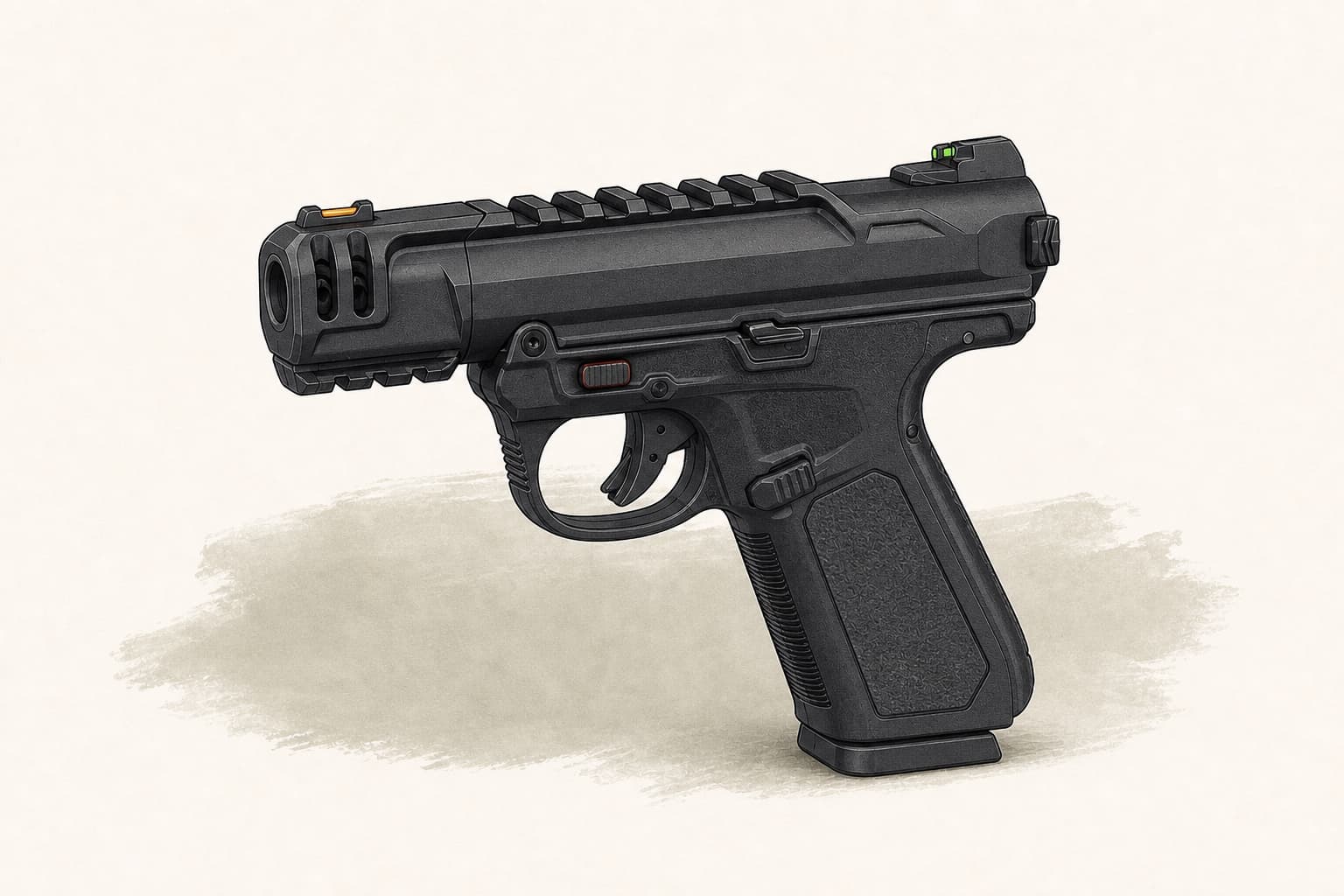

AAP-01C Assassin
Action Army AAP-01C Assassin airsoft replica based on the AAP platform. Explore its technical specifications, official manuals and identified parts.
VERIFIED DATA
SourcedTechnical specifications
- Reference
- ASG 20132
- System
- GBB · Green Gas
- Barrel / weight
- 84 mm · 700 g
- Magazine / power
- 22 BB · 0.81 J (90 m/s)
Compatibility and limits
- Only treat a replacement as compatible when the exact platform, model and generation are stated.
- Parts from visually similar replicas or other brands are not interchangeable by default.
- Confirm dimensions, revision and manufacturer reference before installation.
Basic maintenance
- Unload the replica and disconnect its power source before working on it.
- Keep the inner barrel and hop-up rubber clean and dry.
- Follow the manufacturer’s lubrication and storage instructions.
Source verified · checked on 17/07/2026Open ActionSportGames
EXPLODED VIEW / COMPONENTS
ReviewedVerified parts
Official parts
Original components identified by the replica manufacturer's reference.
No verified references
There are no verified official references for this replica yet.
Upgrades
Compatible aftermarket components intended to replace, reinforce or modify the original assembly.
REFERENCEPART / COMPATIBILITYMANUFACTURER / TYPE
U01-032-1FrameBlack lightweight handguard
Action Army AAP-01 and AAP-01C
Action ArmyUpgrade
U01-032-2FrameRed lightweight handguard
Action Army AAP-01 and AAP-01C
Action ArmyUpgrade
U01-029Muzzle deviceSilencer adapter
Action Army AAP-01C
Action ArmyUpgrade
This catalogue identifies parts and compatibility; it does not show prices, stock or sellers. Verify dimensions and version before replacing a component.
View the 10 verified partsDOCUMENTATION
Manuals and guides
Documentation awaiting verification
We will not link a file until we confirm that it matches the exact brand, model and version.
